VS Technology Lighting

VS Technology manufactures high quality lighting for machine vision applications. Manufactured in Japan, VS Technology ensures high quality product supply. VST has been developing over 100 models and custom products every year based on optimal solutions tailored for their customers. The VST brand of lighting can be used in a wide range of applications from inspections, alignment, character recognition and much more.

VS Technology’s featured lenses can be see here.

Trident Series Lighting

Trident Series has 3 built-in functions that are controlled by external electrical input, rather than needing an additional remote control. Trident Series3 lighting connects directly to the system.

Bar Lights

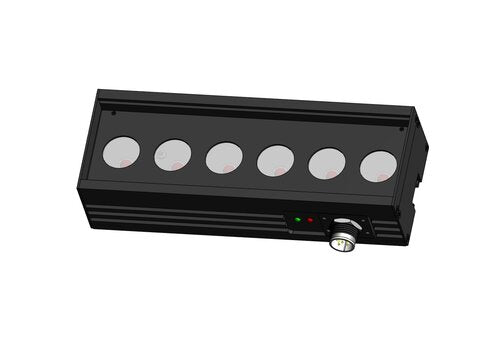

The VS Technology Trident VL-T-AB-1 Series bar lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control.

The VL-T-AB-1 series bar lights are available in 150, 300, or 450mm configurations, with red or white color options.

VL-T-AB15030R-1: Red, 150 x 30, M12
VL-T-AB15030W-1: White, 150 x 30, M12
VL-T-AB30030R-1: Red, 300 x 30, M12
VL-T-AB30030W-1: White, 300 x 30, M12
VL-T-AB45030R-1: Red, 450 x 30, M12
VL-T-AB45030W-1: White, 450 x 30, M12

Top Lights

The VS Technology Trident VL-T-ADBH-1 Series top lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control.

The VL-T-ADBH-1 series top lights are available in 300x300mm, or 450x450 mm configurations, with red or white color options in the 300mm size.

VL-T-ADBH3030R-1: Red, 300 x 300 (Hole Dia. 50mm), M12 (5Pin Male)
VL-T-ADBH3030W-1: White, 300 x 300 (Hole Dia. 50mm), M12 (5Pin Male)
VL-T-ADBH4545W-1: White, 450 x 450 (Hole Dia. 50mm), M16 (7Pim Male)

Back Lights

The VS Technology Trident VL-T-ADB-1 Series back lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control.

The VL-T-ADB-1 series top lights are available in 150x150mm or 300x300mm configurations, with red or white color options.

VL-T-ADB1515R-1: Red, 150 x 150, M12 (5Pin Male)
VL-T-ADB1515W-1: White, 150 x 150, M12 (5Pin Male)
VL-T-ADB3030R-1: Red, 300 x 300, M12 (5Pin Male)
VL-T-ADB3030W-1: White, 300 x 300, M12 (5Pin Male)

Ring Lights

The VS Technology Trident VL-T-LRD-1 Series low angle ring diffused lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control. The VL-T-LRD-1 series lights provide light evenly spread out onto the object surface.

VL-T-LRD-1 lights are available in 2 sizes: 45 inner diameter(77mm outer diameter) and 116mm(166mm outer diameter); and in red or white color configurations.

VL-T-LRD4577R-1: Red, 45mm/77mm, M12 (5Pin Male)
VL-T-LRD4577W-1: White, 45mm/77mm, M12 (5Pin Male)
VL-T-LRD116166R-1: Red, 116mm/166mm, M12 (5Pin Male)
VL-T-LRD116166W-1: White, 116mm/166mm, M12 (5Pin Male)

Direct Square Lights

The VS Technology Trident VL-T-ADS-1 Series direct square lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control.

The VL-T-ADS-1 Series direct square lights are 97x97mm and are available with red or white color options.

VL-T-ADS1010R-1: Red, 97 x 97 (ID52), M12 (5Pin Male)
VL-T-ADS1010W-1:
White, 97 x 97 (ID52), M12 (5Pin Male)

IP67 Bar Lights

The VS Technology Trident VL-T-AB-1-IP67 Series bar lights are suitable for a variety of applications, with built-in over drive function, built-in continuous/strobe functions, and built-in brightness control. The VL-T-AB-1-IP67 series bar lights are IP67 rated. These lights are 300mm long and available in white, red, or IR850 color options

VL-T-AB30030R-1-IP67: Red, 300 x 30, IP67, M12
VL-T-AB30030W-1-IP67: White, 300 x 30, IP67, M12
VL-T-AB30030IR850-1-IP67: IR850, 300 x 30, IP67, M12

VAL Series Lighting

The VAL Series lighting includes a wide variety of affordable, adaptable lighting solutions for any machine vision and industrial needs

Ring Light Series

The VS Technology VAL Ring Lights are available in a variety of configurations. The following series options are available. Ring size listed as inner diameter/outer diameter (mm)

VL-HR Series: Horizontal Ring Lights with 45/75 and 110/146 sizes in red, white, and blue color configurations
VL-LR Series: Low Angle Ring Lights with 25/50, 48/74, 68/100, 96/132, and 134/170 sizes in red, white, blue, IR850 and UV365 color configurations (color options vary by size)
VL-FR Series: Flat Ring Lights with 26/70 and 35/70 sizes in red, white, and blue color configurations
VL-RD Series: Diffused Ring Lights, 44/123 in red, white or blue configurations or a white 44/123 half ring
VL-FRD Series: Flat Ring Diffused Lights with 116/170, 166/220, and 266/320 sizes in red, white, or blue color configurations
VL-LRDH Series: High-power Low Angle Ring Diffused Lights with 41/91 and 116/166 in red, white, blue or green color configurations (green only available in 116/166 size)
VL-DR Series: Direct Ring Lights with 16/48, 28/50, 30/66, 50/90, and 60/120 sizes in red, white, blue, green, IR850 and UV365 color configurations (color options vary by size)
VL-LRD Series: Low Angle Ring Diffused Light with 20/75, 45/77, 73/100, and 153/180 sizes in red, white, blue, green, and IR850 color configurations (color options vary by size)
VL-ADS Series: Direct Square Light in 100x100mm square configuration with red and white color options

Bar Light Series

The VS Technology VAL Bar Lights are available in a variety of configurations. Whether you need bright field or dark field, there is a bar light that will work. Additional accessories can be used to create diffused or polarized light. The following series options are available.

VL-A01-1 Series: Area Light, 50x70mm, white
VL-BP Series: Bar Light with Chip LED, 80x30mm in red, white, or blue color options
VL-B Series: Bar Light in 50x15, 100x15, 150x15, 200x15; 75x30, 100x30, 200x30, 300x30; 225x20, 250x20, 110x55, 150x100, and 30x15(x3surface) sizes with red, white, blue, IR850, and UV395 color options (color options vary by size)
VL-AB-1 Series: Advanced Bar Light in 150x30, 300x30, 450x30 and 750x30 sizes in red and white color options. RGB/3CH control in 150 and 300mm sizes

Back Light Series

The VS Technology VAL Back Lights are available in a variety of configurations, so there is a backlight that suits The following series options are available. (sizes in mm)

VL-G2DB series: High-Power Back Light in 30x30 and 290x210 sizes with red and white color options
VL-TLN series: Telecentric Lighting in 30, 60, 100, 150 diameter sizes with red, white, blue, and green color options
VL-EB series: Edge Back Light in 120x600, 270x300, 450x450, 210x210, 210x360, 300x300 sizes, white.
VL-CB-CL series: High Parallelism Chip Back Light, 90x90 with red, white, blue and green color options.
VL-CB series: Direct Chip Back Light in 32x32, 32x62, 62x62, 92x92, 122x122, 152x212 and 152x272 sizes with red, white, blue and green color options (color options vary by size)

Line Light Series

The VS Technology Line Bar light series features a high powered LED Line light idea for a working distance of 50-100mm

VL-LB1 Series: Line Bar Light in 100, 200, 300, 400mm lighting area in white (100-300 options) or IR850(400)
VL-LB3 Series: High Power Line Bar Light in 200 and 400 mm area options, white

Co-Axial Light Series

The VS Technology Co-axial lighting solutions are designed for a variety of coaxial lighting needs. These lights are available in external and spot light varieties.

For External Illumination

VL-EXC series: External Co-axial Box Light in 31x28, 50x50, 75x70, 100x100, and 130x130 sizes with red, white, and blue color options (sizes denote aperture area in mm)

For Telecentric Illumination

VL-CSH series: High Power Co-axial Spot Light in 350mA, 700mA, and 700mA L shape sizes with red, white, blue, green, IR850 and UV365 color configurations (color options vary by size)

VL-CS series: Compact Size Co-axial Spot Light in 12V, 24V, and 24V Narrow angle configurations with red, white, blue, and green color options (color options vary by size)

Uniformed Light Series

The VS Technology Uniformed light series offer a variety of lighting sources that provide uniform light over a broad area

VL-EBH series: Top Light suitable for Positioning applications in 100, 210, and 300mm area options, white

VL-SQD series: Square Diffused Light ideal for glossy surface inspection in 48x48, 75x75, and 120x120 area options with red, white, and blue color configurations

VL-D series: Dome Light that provides uniform, non-shadowy light. In 100, 150, 200, and 300mm diameter sizes with red, white, and blue color options. The VL-D series lights are available in standard or high power options.

Spot Light Series

The VS Technology VL-G2SP1 series spot lights are designed for C-Mount lenses. The VL-G2SP1 spot lights are suitable for OCR/OCV/Inspection applications.

VL-G2SP1-50W: White ideal for 50mm lenses
VL-G2SP1-75W: White ideal for 75mm lenses
VL-G2SP1-100W: White ideal for 100mm lenses
