FLIR BFS-U3-04S2C-CS

Flir
|
BFS-U3-04S2C-CS
$308.00 $0.00( / )

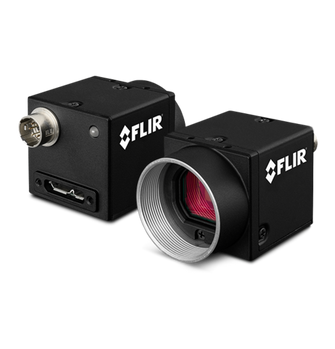

Teledyne FLIR BFS-U3-04S2C-CS 0.4 MP, 522 FPS, Sony IMX287, Color

Customization services offered; sensor glass removal, filter installation, custom housing, etc. Inquire for more information on BFS-U3-04S2C-CS.

Specification Sheet>>

Part Number
BFS-U3-04S2C-CS
Resolution
720 × 540
Frame Rate
522
Megapixels
0.4
Chroma
Color
Sensor Name
Sony IMX287
Sensor Type
CMOS
Sensor Format
1/2.9"
Readout Method
Global shutter
Pixel Size
6.9
Lens Mount
CS-mount
ADC
8-bit, 10-bit, 12-bit
Required Accessories
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
Features
Acquisition Modes
Continuous Single Frame Multi Frame
Exposure Range
4 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Frame Rate
522
Gain Range
0 db to 47 dB
Image Buffer
240 MB
Image Processing
Color correction matrix, gamma, lookup table, saturation, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings
Performance
Absolute Sensitivity Threshold (y)
7.55
Dynamic Range dB
74.35
Power Consumption
3 W
Quantum Efficiency Blue
49.86 (460nm)
Quantum Efficiency Green
56.96 (530nm)
Quantum Efficiency Red
45.11 (625nm)
Saturation Capacity (e-)
22436
Temporal Dark Noise (e-)
3.80
Physical
ADC
8-bit, 10-bit, 12-bit
Auxiliary Output
3.3 V, 120 mA maximum
Chroma
Color
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Interface
USB 3.1 Gen 1
Lens Mount
CS-mount
Mass
36 grams
Megapixels
0.4
Non-isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C
Opto-isolated I/O Ports
1 input, 1 output
Part Number
BFS-U3-04S2C-CS
Pixel Size
6.9
Power Requirements
8-24 V via GPIO or 5 V via USB3
Readout Method
Global shutter
Resolution
720 × 540
Sensor Format
1/2.9"
Sensor Name
Sony IMX287
Sensor Type
CMOS
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Recommended System Configuration
CPU
3.1 GHz or equivalent CPU
Hard Drive
200 MB hard drive space
Operating System
Windows or Linux (32–bit or 64–bit)
Port
USB 3 Port
RAM
2 GB RAM or more
Required Accessories
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)

Teledyne FLIR BFS-U3-04S2C-CS 0.4 MP, 522 FPS, Sony IMX287, Color

Customization services offered; sensor glass removal, filter installation, custom housing, etc. Inquire for more information on BFS-U3-04S2C-CS.

Specification Sheet>>

Part Number
BFS-U3-04S2C-CS
Resolution
720 × 540
Frame Rate
522
Megapixels
0.4
Chroma
Color
Sensor Name
Sony IMX287
Sensor Type
CMOS
Sensor Format
1/2.9"
Readout Method
Global shutter
Pixel Size
6.9
Lens Mount
CS-mount
ADC
8-bit, 10-bit, 12-bit
Required Accessories
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
Features
Acquisition Modes
Continuous Single Frame Multi Frame
Exposure Range
4 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Frame Rate
522
Gain Range
0 db to 47 dB
Image Buffer
240 MB
Image Processing
Color correction matrix, gamma, lookup table, saturation, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings
Performance
Absolute Sensitivity Threshold (y)
7.55
Dynamic Range dB
74.35
Power Consumption
3 W
Quantum Efficiency Blue
49.86 (460nm)
Quantum Efficiency Green
56.96 (530nm)
Quantum Efficiency Red
45.11 (625nm)
Saturation Capacity (e-)
22436
Temporal Dark Noise (e-)
3.80
Physical
ADC
8-bit, 10-bit, 12-bit
Auxiliary Output
3.3 V, 120 mA maximum
Chroma
Color
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Interface
USB 3.1 Gen 1
Lens Mount
CS-mount
Mass
36 grams
Megapixels
0.4
Non-isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C
Opto-isolated I/O Ports
1 input, 1 output
Part Number
BFS-U3-04S2C-CS
Pixel Size
6.9
Power Requirements
8-24 V via GPIO or 5 V via USB3
Readout Method
Global shutter
Resolution
720 × 540
Sensor Format
1/2.9"
Sensor Name
Sony IMX287
Sensor Type
CMOS
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Recommended System Configuration
CPU
3.1 GHz or equivalent CPU
Hard Drive
200 MB hard drive space
Operating System
Windows or Linux (32–bit or 64–bit)
Port
USB 3 Port
RAM
2 GB RAM or more
Required Accessories
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
Vendor:

Flir

SKU:

BFS-U3-04S2C-CS

Weight:

1.0 lb

Lead time varies by product. Standard non-back-order items ship within 1-7 days. Items in stock at our Sacramento warehouse ship same day. Back-ordered item lead times vary and are based on current production backlogs and existing open orders. After receipt of order you will be contacted with a shipping timeline.

*Note, if order is resale or government tax exempt, contact us to place the order directly with our sales staff and provide your tax exemption form.
