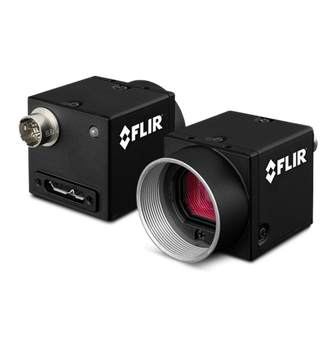

Teledyne FLIR BFS-U3-23S3C-C
2.3 MP, 163 FPS, Sony IMX392, Color
Customization services offered; sensor glass removal, filter installation, custom housing, etc. Inquire for more information.
- Part Number
- BFS-U3-23S3C-C
- Resolution
- 1920 x 1200
- Megapixels
- 2.3
- Max Frame Rate Standard
- 163
- Sensor Model
- Sony IMX392
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 1/2.3"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- IR-Cut Off (670 nm)
- Lens Mount
- C-mount
- Synchronization
- Software trigger, hardware trigger, action command
- Data Interface
- USB 3.1 Gen 1
- Auxiliary Output
- 3.3 V, 120 mA maximum
- Connector
- USB3 Micro-B | Hirose HR10A-7R-6PB
- Digitization Bit Depth (ADC)
- 10-bit, 12-bit
- Dimensions [W x H x L]
- 29 mm × 29 mm × 30 mm
- Mass
- 36 g
- Non-Isolated I/O Ports
- 1 bi-directional, 1 input
- Operating Humidity
- 20 to 80% (no condensation)
- Operating Temperature
- 0° to 50°C (ambient)
- Opto-isolated I/O Ports
- 1 input, 1 output
- Power Consumption [Maximum]
- <3 W
- Power Requirements
- 8-24 V via GPIO or 5 V via USB3
- Serial Port
- Supported
- Storage Humidity
- 30 to 95% (no condensation)
- Storage Temperature
- -30° to 60°C
